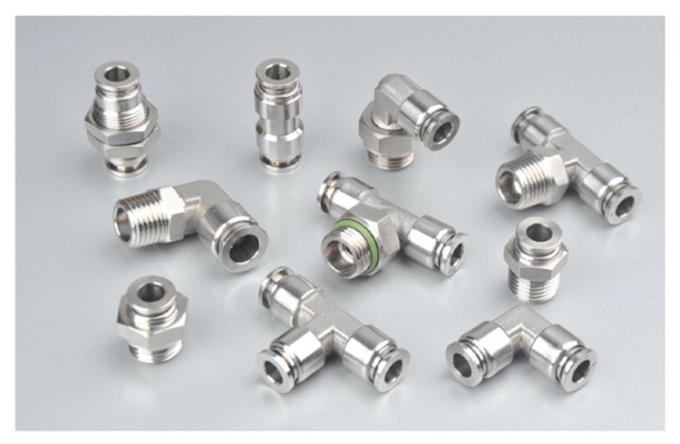

316L ステンレス鋼のフィッティング
|
|
特徴
|
|
仕様
|
|
モデル
|
SSL
|
|
液体
|
空気,水,蒸気,真空
|
|
ポートサイズ
|
4mm,6mm,8mm,10mm,12mm,14mm,16mm
|
|
男性糸のサイズ
|
M5,R1/8",R1/4",R3/8",R1/2"
|
|
動作圧
|
0〜1.5Mpa
|
|
マックス 圧力
|
1.8 MPa
|
|
動作温度
|
-20〜140 °C
|
|
認証
|
ISO9001:2015,CE
|
|
適用可能なチューブ
|
ポリウレタンとナイロン
|
|
輸送パッケージ
|
内箱,外箱,パレット
|
|

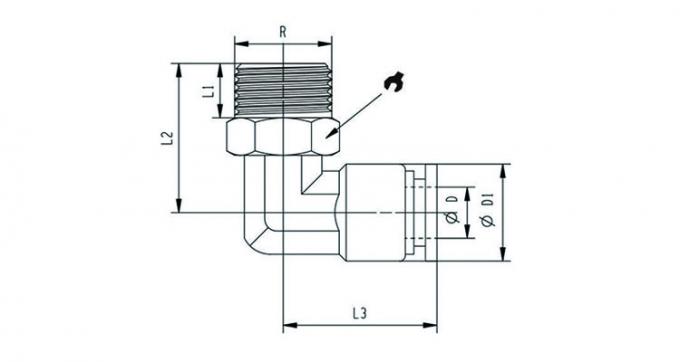

尺寸 (mm)
|
|
モデル
|
ØD
|
R
|
L1
|
L2
|
L3
|
ØD1
|
鍵のサイズ
|
|
SSL04-M5
|
4
|
M5
|
4
|
23
|
18
|
10
|
10
|
|
SSL04-01
|
4
|
R1/8"
|
7.5
|
23
|
18
|
10
|
12
|
|
SSL04-02
|
4
|
R1/4"
|
9.5
|
25.5
|
18
|
10
|
14
|
|
SSL06-M5
|
6
|
M5
|
4
|
23
|
21
|
12
|
12
|
|
SSL06-01
|
6
|
R1/8"
|
7.5
|
22.5
|
21
|
12
|
12
|
|
SSL06-02
|
6
|
R1/4"
|
9.5
|
25.5
|
21
|
12
|
14
|
|
SSL06-03
|
6
|
R3/8"
|
10.5
|
25.5
|
21
|
12
|
17
|
|
SSL08-01
|
8
|
R1/8"
|
7.5
|
23
|
23
|
14
|
12
|
|
SSL08-02
|
8
|
R1/4"
|
9.5
|
25
|
23
|
14
|
14
|
|
SSL08-03
|
8
|
R3/8"
|
10.5
|
25
|
23
|
14
|
17
|
|
SSL08-04
|
8
|
R1/2"
|
13.5
|
32
|
23
|
14
|
21
|
|
SSL10-01
|
10
|
R1/8"
|
7.5
|
27.5
|
27.5
|
17
|
14
|
|
SSL10-02
|
10
|
R1/4"
|
9.5
|
27
|
27.5
|
17
|
14
|
|
SSL10-03
|
10
|
R3/8"
|
10.5
|
27
|
27.5
|
17
|
17
|
|
SSL10-04
|
10
|
R1/2"
|
13.5
|
34
|
27.5
|
17
|
21
|
|
SSL12-02
|
12
|
R1/4"
|
9.5
|
29
|
32
|
20
|
14
|
|
SSL12-03
|
12
|
R3/8"
|
10.5
|
29
|
32
|
20
|
17
|
|
SSL12-04
|
12
|
R1/2"
|
13.5
|
36.5
|
32
|
20
|
21
|
