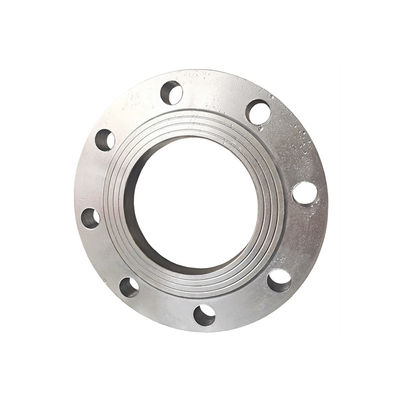

304 stainless steel flange/round steel forging/GB flat welding/butt welding /HG5010/ 16kg pressure

認証
中国 TOBO STEEL GROUP CHINA 認証
中国 TOBO STEEL GROUP CHINA 認証
顧客の検討
最も最近の売り手の評価では、TOBO は優秀な評価、それによいです、協力し続けます勝ちました。

—— ブラジル---Aimee

ASTM A213 T9の合金鋼の管、安定した質、よい価格、優秀なseriveのTOBOのグループは私達の信頼できるパートナーです

—— タイ ---デーブ Mulroy

オンラインです

304 stainless steel flange/round steel forging/GB flat welding/butt welding /HG5010/ 16kg pressure

304 stainless steel flange/round steel forging/GB flat welding/butt welding /HG5010/ 16kg pressure
304 stainless steel flange/round steel forging/GB flat welding/butt welding /HG5010/ 16kg pressure

大画像 :  304 stainless steel flange/round steel forging/GB flat welding/butt welding /HG5010/ 16kg pressure

商品の詳細:
起源の場所: 中国
ブランド名: TOBO
証明: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
モデル番号: 16のkg圧力フランジ
お支払配送条件:
最小注文数量: 1pcs
価格: Depending on quantity
パッケージの詳細: 標準的な輸出耐航性のあるパッキング
受渡し時間: 量による10-50日
支払条件: T/T、L/C、ウェスタン・ユニオン
供給の能力: 1ヶ月あたりの3,0000pcs

304 stainless steel flange/round steel forging/GB flat welding/butt welding /HG5010/ 16kg pressure

説明
材料: ステンレス鋼 形: 減少
関係: 溶接 タイプ: フランジ
標準: DIN、ANSI、BS、ASTM 色: または要求に応じて

304 stainless steel flange/round steel forging/GB flat welding/butt welding /HG5010/ 16kg pressure

Main functions of flange:
1, pipe failure, easy to disassemble detection;
2. Connect the pipeline and keep the pipeline with good sealing performance;
3. If a certain section of pipeline has problems, it is easy to replace a certain section of pipeline.
Flat welding flange in production and use has certain technical requirements and technical parameters, according to a certain way and method of production and processing:
1. The butt weld of the ring shall be subjected to post-welding heat treatment and 100% ray or ultrasonic inspection, and the ray inspection shall meet the grade II requirements of JB4730, and the ultrasonic inspection shall meet the grade I requirements of JB4730.Butt welding flange adopts certain welding standards and technology production and processing, in line with the corresponding production standards and requirements of ***.
2, the production of flat welding flange steel plate should be ultrasonic inspection, no delamination defects, to ensure good quality and performance problems, in accordance with certain quality requirements of production and inspection, to ensure that the production and use of steel plate no quality problems;
3, should be along the steel rolling direction cut into strips, bending welding into a circular ring, and make the surface of the steel ring cylindrical.The steel plate shall not be directly machined into a neck flange in the production of the joint flange, and a certain technology shall be used for production and processing.

Standard ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer)
Special Flange: According to the drawing Picture
Materials Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L
Stainles steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Duplex Steel: ASTM A182 F51, F53, F55
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91
Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350
LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....
Dimension (150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300
Marking Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement
Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing,
Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment
Brand TOBO
Certificates API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Advantages 1. Abundant stock and prompt delivery
2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.
4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.)304 stainless steel flange/round steel forging/GB flat welding/butt welding /HG5010/ 16kg pressure 0304 stainless steel flange/round steel forging/GB flat welding/butt welding /HG5010/ 16kg pressure 1
