商品の詳細:
|
| 製品名: | ブラインド フランジを挿入します | ProductName: | 合金鋼のフランジ |
|---|---|---|---|
| 肉厚: | カスタマイズされた | 規格: | ASME、ANSI、DIN、JIS |
| 耐食性: | 高い | 厚さ: | 0.1-8UM |
| アプリケーション: | 石油・ガス、石油化学、発電所、造船 | ポート: | 上海、ニンポー、等。 |
| サイズ: | DN600 | 材料グレード: | S32950 |
| 使用法: | パイプラインの接続 | 繋がり: | フランジ |
| Surfacefinish: | 滑らか、塗装、または亜鉛メッキ | 気温: | -50℃～550℃ |
| 加圧: | 2500を分類するクラス150 | ||
| ハイライト: | ASME B16.5 blind flange,space saving insert flange,alloy steel Class 150 flange |
||

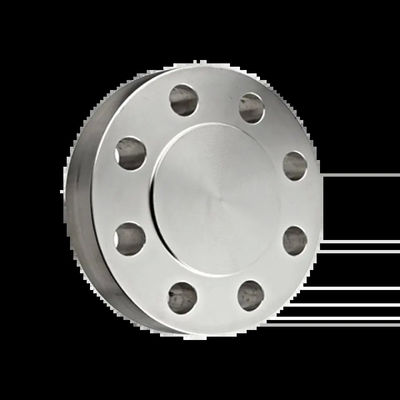

Easy Installation Space Saving Insert Blind Flange ASMEB16.5 Class150
An Insert Blind Flange is a solid disc with no center hole, designed to be inserted and bolted between two standard flanges in a piping system . Its primary function is to block off sections of a pipeline . Unlike a pipe cap, a blind flange is secured with bolts, making it easy to install and remove for maintenance, inspection, or system modification . It serves as a reliable, removable closure.
The design and manufacturing of insert blind flanges are governed by various international and national standards. Key parameters include:
| Parameter | Details & Examples |
|---|---|
| Pressure Ratings | Common ratings include PN 10 and PN 16 . Standards like GB/T 4450-1995 cover marine-use flanges . |
| Size Range | Available in a wide range of diameters, from as small as DN 15 up to large sizes like DN 2000 or even larger . |
| Materials | Made from various materials including carbon steel (e.g., Q235, ASTM A105), alloy steel, stainless steel, and plastic . |
| Standards | Conforms to various standards such as GB/T (China), DIN (Germany), ASME (USA), and industry-specific standards like SH/T for petrochemicals . |
| Temperature Range | Operating temperatures can vary; for example, some are rated for temperatures up to 300 °C, while others, like spectacle blinds per DIN 86042, are used up to 120 °C . |
Insert blind flanges are critical for safety and maintenance in numerous industries:
Isolation for Maintenance and Safety: They provide a secure and sealed barrier to temporarily or permanently isolate a section of a pipeline . This allows for safe inspection, cleaning, or repair of equipment like valves, pumps, and vessels without draining the entire system . Their robust sealing performance makes them a preferred isolation method.
Pipeline Termination: Used to permanently or temporarily seal the end of a piping system .
Wide Industry Use: They are versatile components found in:
Shipbuilding: Used in various shipboard systems, with standards like GB/T 4450-1995 specifically for marine flanges .
Petrochemical & Oil Refining: Standards like SH/T3425-2011 govern their use in steel pipelines for this sector .
Power Generation: Isolate sections in boiler and steam systems to prevent leaks and ensure safety during upkeep.
Aerospace and Vacuum Systems: Used in high-specification environments, with standards available for aerospace applications and vacuum systems .
FAQ
1. who are we?
We are based in Hebei, China, start from 2021,sell to Domestic Market(50.00%), Southeast Asia(30.00%),Western Europe(20.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.what can you buy from us?
Flange, Tube Sheet
4. why should you buy from us not from other suppliers?
The company has strong technical force, complete production equipment and perfect testing means.It is mainly engaged in processing and manufacturing pipe fittings, anti-corrosion and insulation of pipes and pipe fittings, and sales of pipe fittings, pipes,
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
コンタクトパーソン: Andrew
