商品の詳細:
|
| 製品名: | 溶接の首のフランジ | 形状: | ルーズフランジ |
|---|---|---|---|
| 原産国: | 中国 | カスタマイズされたフランジ: | 許容できる |
| 温度範囲: | -29°Cから593°C | 圧力率: | 150LBから2500LB |
| 製品タイプ: | 造られたフランジ | テスト: | 静水圧試験、超音波試験、放射線透過試験 |
| 規格: | ASME B165ASME B1647MSS SP-44 | ストック: | 在庫あり |
| 応用: | SCH、10,20,30,40,80,120,160、STD、XS、XXS | 製造工程: | 鍛造 |
| 合金かどうか: | 合金 | 表面: | 砂を転がす 防腐油 |
| 材料: | N07718 | ||
| ハイライト: | GOST 12821-80 welding neck flanges,PN6 stainless steel flanges,SS304 316 alloy steel flanges |
||

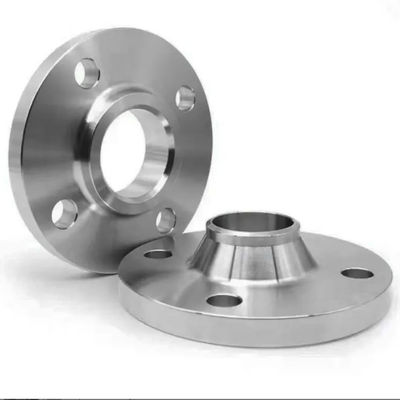

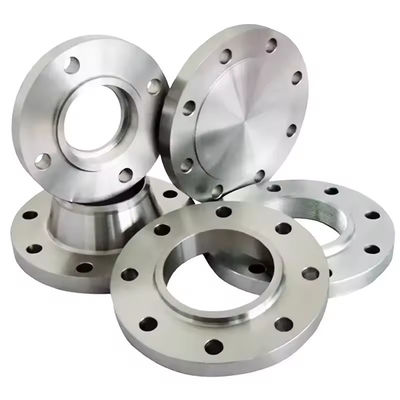

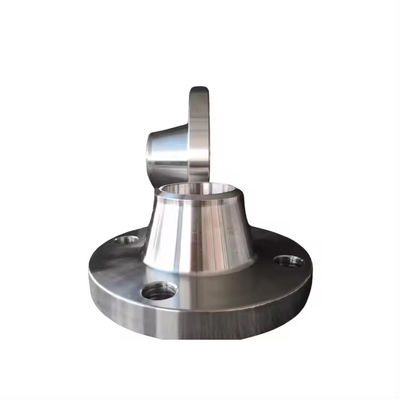

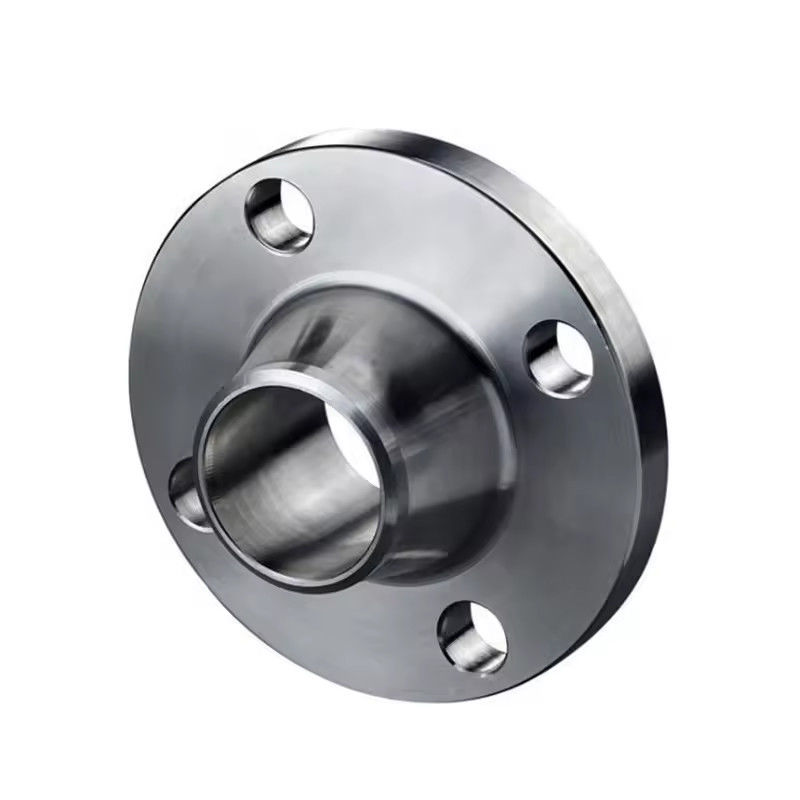

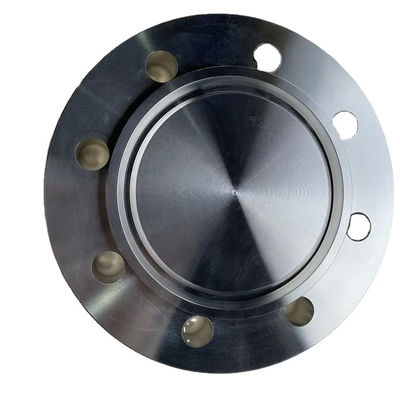

GOST 12821-80 PN6 Welding Neck Flanges SS304 SS316
| Size: | 3 inch | Material: | ASTM A182 F321 | Standard: | ANSI B16.5 |
| Place of Origin: | Shanghai, China (Mainland) | Model Number: | DN20-500 | Brand Name: | TOBO |
| Standard or Nonstandard: | Standard | material: | ASTM A182 F321 | Type: | WN flange |
| Packaging Details: | In wooden case, pallet or as customers' requirement |
| Delivery Detail: | 14-30 days |
Product Description
| flangeType | Stainless Steel Flanges ASTM A 182, GR F1, F11, F22, F5, F9, F9 WN SO BL JIN ECT |
| Standard | ASME/ANSI B16.5 |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | stainless steel |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange |
ASTM A182 F5; F11;F22;F91;F51 |
|
Stainless Steel flange |
ASTM A182 F304/304H/304L |
|
Nickel Alloys Flanges |
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange |
Copper, Brass & Gunmetal |
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Product Range:
WNRF Flanges Size : 1/8" NB TO 48"NB.
WNRF Flanges Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Stainless Steel WNRF Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L,
Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel WNRF Flanges: ASTM A 105, ASTM A 181
Alloy Steel WNRF Flanges : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys WNRF Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys WNRF Flanges: Copper, Brass & Gunmetal
WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629,
DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Value Added Services
Hot Dip Galvanizing , Epoxy Coating.
Test Certificate
Manufacturer Test Certificate as per EN 10204 / 3.1B
Why choose us
1. If the quantity of order is not very big,we could send them to you by express delivery,
such as TNT,DHL,UPS OR EMS etc.
2. If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.
Our long-term cooperated agent also available.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer ,You can see the certification.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
