商品の詳細:
|
| 製品名: | 合金鋼のフランジ | 加圧: | 150#から2500# |
|---|---|---|---|
| 表面処理: | /Tin/Ag Plated/Auめっきされる、等亜鉛でメッキしなさい/ニッケル。 | 技術: | 鍛造 |
| パッキング: | 木製ケース | サイズ範囲: | 1/2インチ～48インチ |
| 標準か非標準か: | 標準 | フランジを向き: | 上げられた表面 |
| 顔: | RF FF RTJ TF GF LF LM | 合金かどうか: | 非合金 |
| 耐食性: | 酸化や腐食に対する優れた耐性 | プロセス: | 鍛造 |
| 耐食性: | 高い | 温度定格: | -20°Fへの1000°F |
| 直径: | 1/2 |

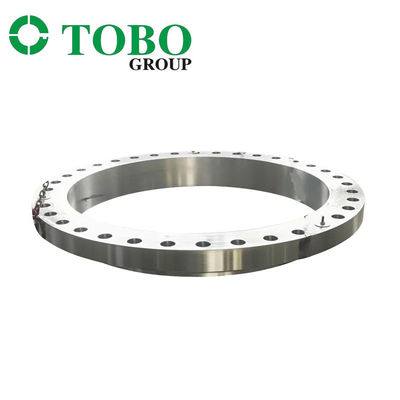

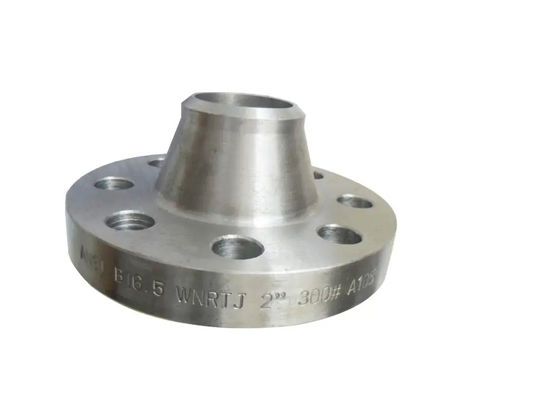

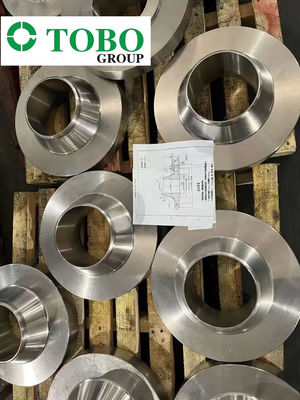

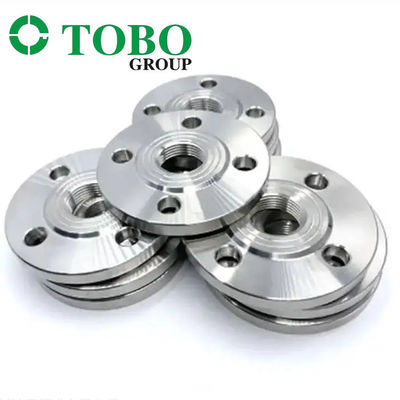

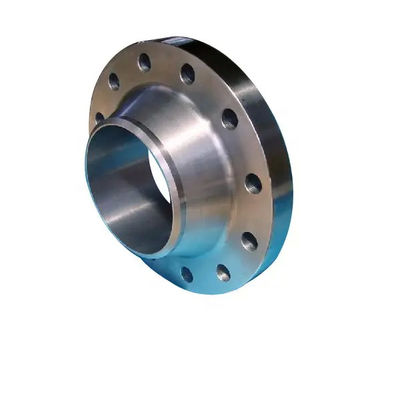

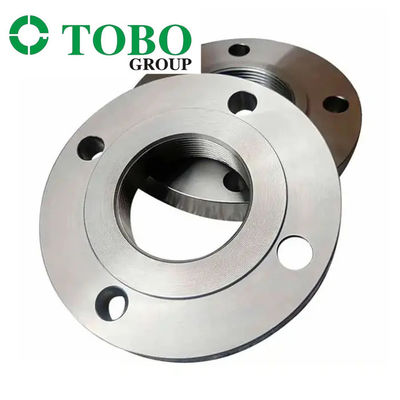

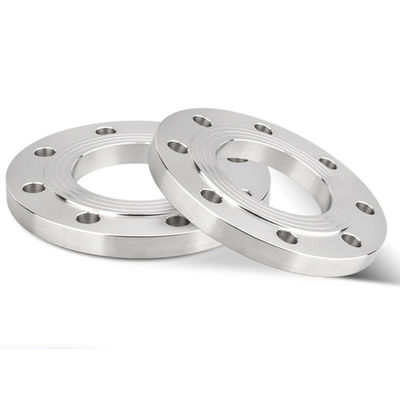

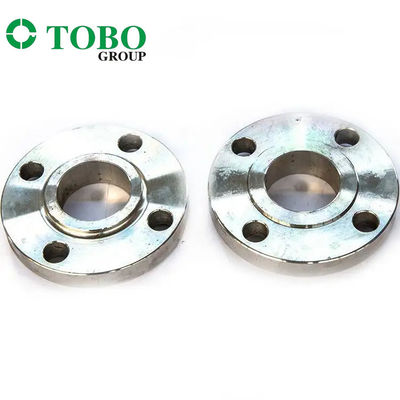

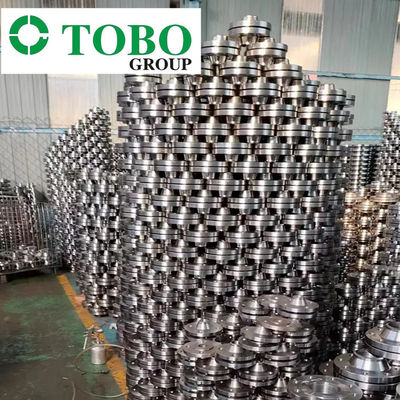

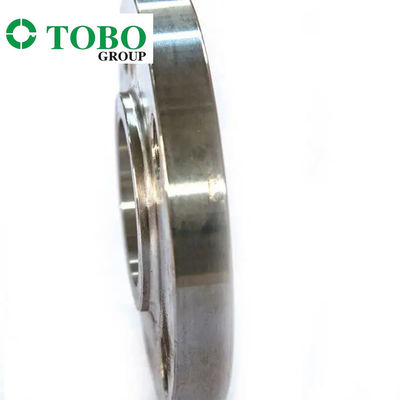

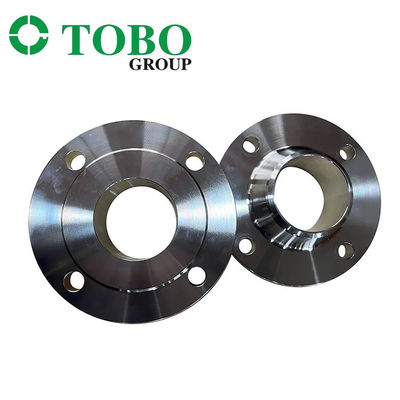

Full Range DN500 PN10 Steel Flange Weld Neck Blind Threaded Socket Weld Slip On
| Steel steel flanges | ||
| Material | Carbon steel | ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH |
| P250GH, P280GHM 16MN, 20MN ,20# | ||
| Stainless steel | ASTM A182, F304/304L, F316/316L | |
| Alloy steel | ASTM A182 A182 F12,F11,F22,F5,F9,F91etc. | |
| Standard | ANSI | Class 150 steel flanges-Class 2500 steel flanges |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| JIS | 5K steel flanges-20K steel flanges | |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar | |

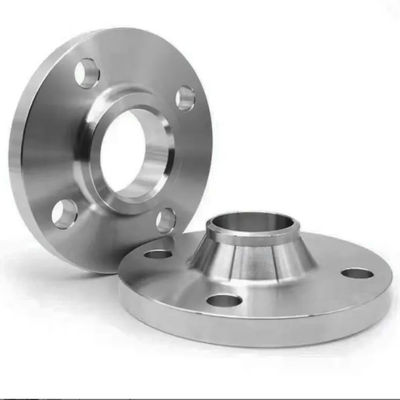

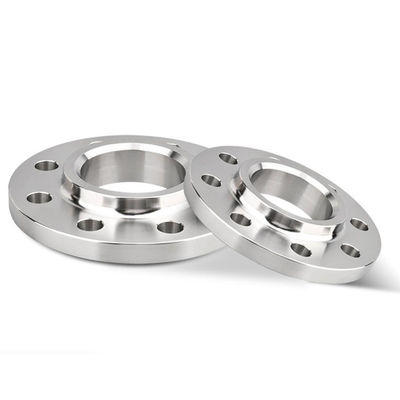

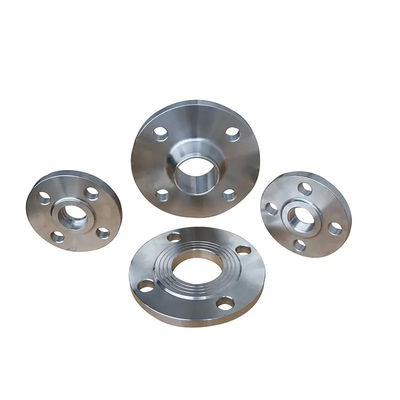

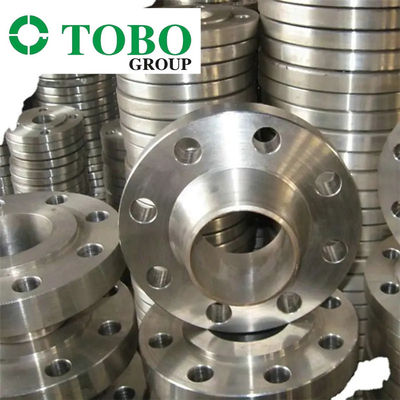

| TYPE | 1.Welding neck steel flange 2.Slip on | |

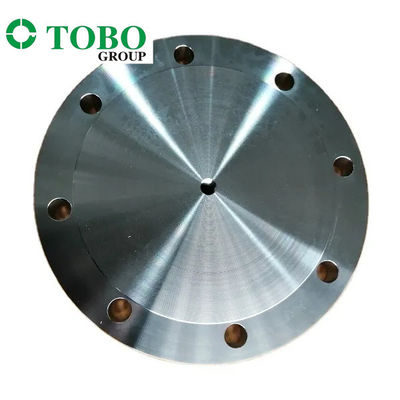

| 3.Blind flange 4.Long welding neck flange | ||
| 5.Lap joint flange 6.Socket welding | ||

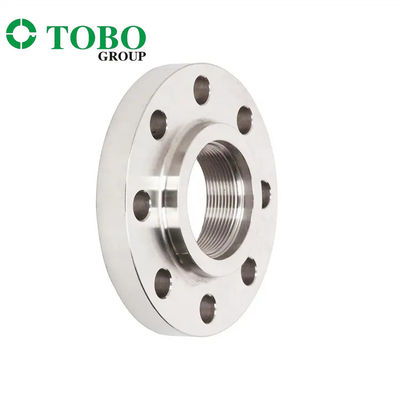

| 7.Threaded flange 8.Flat flange | ||

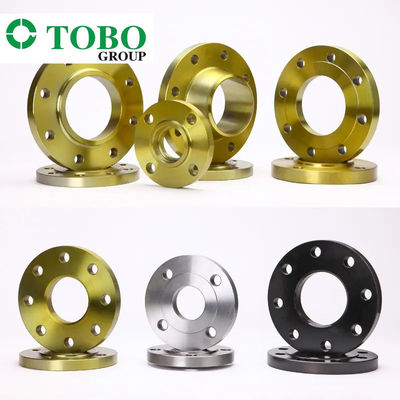

| Surface | Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized | |
| Connection | Welding, Threaded | |
| Technical | Forged, Casting | |
| Size | DN10-DN3600 | |

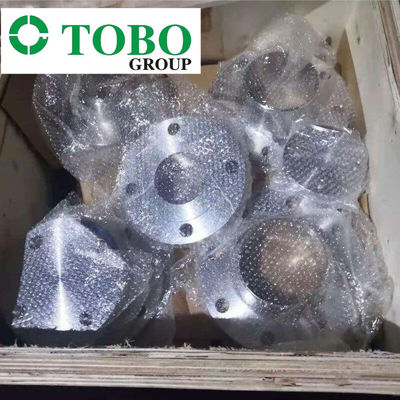

| Package | 1.>Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside). 2:As Customers' Requirements | |
| Heat Treatment | Normalizing, Annealing, Quenching Tempering | |
| Certificate | TUV,ISO9001:2008;PED97/23/EC,ISO14001:2004,OHSAS18001:2007 | |
| Applications | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. | |
Stainless steel also contains varying amounts of Carbon, Silicon and Manganese. Other elements such as Nickel and Molybdenum may be added to impart other useful properties such as enhanced formability and increased corrosion resistance.Stainless steel is an alloy of Iron with a minimum of 10.5% Chromium. Chromium produces a thin layer of oxide on the surface of the steel known as the 'passive layer'. This prevents any further corrosion of the surface. Increasing the amount of Chromium gives an increased resistance to corrosion.
What is stainless steel
| Grade | C Max | Mn Max | P Max | S Max | Si Max | Cr | Ni | Mo |
| 301 | 0.15 | 2.00 | 0.05 | 0.03 | 1.00 | 16.00-18.00 | 6.00-8.00 | |
| 302 | 0.15 | 2.00 | 0.04 | 0.03 | 1.00 | 17.00-19.00 | 8.00-10.00 | |
| 304 | 0.07 | 2.00 | 0.05 | 0.03 | 1.00 | 18.00-20.00 | 8.00-10.50 | |
| 304L | 0.03 | 2.00 | 0.05 | 0.03 | 1.00 | 18.00-20.00 | 9.00-13.00 | |
| 301S | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 24.00-26.00 | 19.00-22.00 | |
| 316 | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | 0.03 | 2.00 | 0.05 | 0.03 | 1.00 | 16.00-18.00 | 12.00-15.00 | 2.00-3.00 |
| 321 | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 17.00-19.00 | 19.00-13.00 | |
| 430 | 0.12 | 1.00 | 0.04 | 0.03 | 0.75 | 16.00-18.00 |
