商品の詳細:
|
| 名前: | ステンレス・スティール・ティ | 材料: | A403 WPS 304 |
|---|---|---|---|
| 使用法: | 石油・ガス・下水道輸送 | サイズ: | 1インチ |
| 標準: | ASME B169 | ||
| ハイライト: | ASTM A182 stainless steel reducing tee,304/316 forged NPT threaded tee,alloy steel female pipe fittings |
||

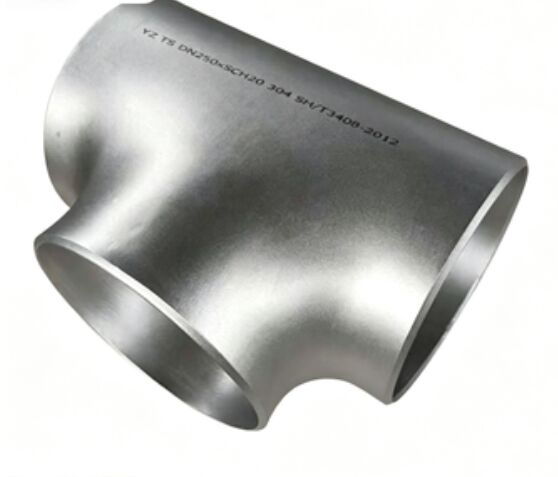

STAINLESS STEEL TEE, REDUCING, ANSI B16.9, SMLS, SCH:40S x SCH:40S, BW A403 WPS 304
Introduction
Tee is a pipe fitting and pipe connector, which is used at the branch pipe of the main pipe. Equal diameter tee is a kind of tee. There are two kinds of tee: General equal diameter tee and reducing tee. It is named because the three ends can be connected with the pipe.
It is widely used in the construction of urban roads, chemical plants, liquefied petroleum gas, chemical industry, sanitation, etc. The pressure of this kind of pipe fitting is high in industry, and the maximum pressure can reach 600kg. The pressure of water pipe in life is low, generally 16KG.
Overview and features:316 stainless steel
Due to the addition of Mo, its corrosion resistance, atmospheric corrosion resistance and high temperature strength are particularly good, and can be used under harsh conditions; Excellent work hardening (non-magnetic); Excellent high temperature strength; No magnetism in solid solution state; Cold rolled products have good gloss and beautiful appearance; Compared with 304 stainless steel, the price is higher.
The corrosion resistance, and high temperature strength of 316 stainless steel have been greatly improved due to the addition of Mo element. The high temperature resistance can reach 1200-1300 degrees and can be used under harsh conditions.
Uses: seawater equipment, chemical, dye, papermaking, oxalic acid, fertilizer and other production equipment; Photography, food industry, coastal facilities, ropes, CD rods, bolts, nuts.
| MATERIAL | Carbon Steel : | |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn, | ||
| DIN St37, St45.8, St52.4,St.35.8,St.35.8. | ||
| Stainless Steel: | ||
| 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti | ||
| 00Cr17Ni14Mo2 304 304L 316 316L | ||
| Alloy Steel: | ||
| 16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1, | ||
| A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70 | ||
| STANDARD | ASTM / JIS / DIN / BS / GB/GOST | |
| MODEL | 1.Tee(Straight ) | |
| 2.Tee(Reducing) | ||
| TYPE | Seam Or Seamless | |
| SURFACE | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize | |
| WALL THICKNESS | SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60, | |
| SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM | ||
| SIZE | 1/2"-48"(Dn15-Dn1200) | |
| CONNECTION | Welding | |
| SHAPE | Equal, Reducing | |
| CERTIFICATE | ISO9001 SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED | |
| APPLICATION | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc | |
| RELATED PRODUCTS | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Malleable iron pipe fittings | 4. Pipes | |
| 5. High-pressure fittings | 6. Valves | |
| 7. P.T.F.E .thread seal tape | 8. Brass fittings | |
| 9. Ductile iron pipe fittings | 10. Copper fittings | |
| 11. Sanitary fittings, etc,. | 12. Grooved fittings | |
| Customers’ drawings or designs are available. | ||
| PACKAGE | 1> 1/2" - 2" in cartons. | |
| 2>Above 2" in wooden cases. | ||
| Big size is workable by pallets. | ||
| DELIVERY DETAILS | According to the quantities and specifications of each order. | |
| Normal delivery time is from 15 to 30working days after receiving the deposit. | ||
