商品の詳細:
|
| 製品名: | パドルブラインドフランジ | 材料: | ステンレス鋼 |
|---|---|---|---|
| 標準: | ASME B16.5 | 応用: | 石油化学 |
| 検定証: | EN 10204/3.1B | 材質グレード: | ASTM B564 |
| 外径: | 4インチ | プレッシャー: | 150lb |

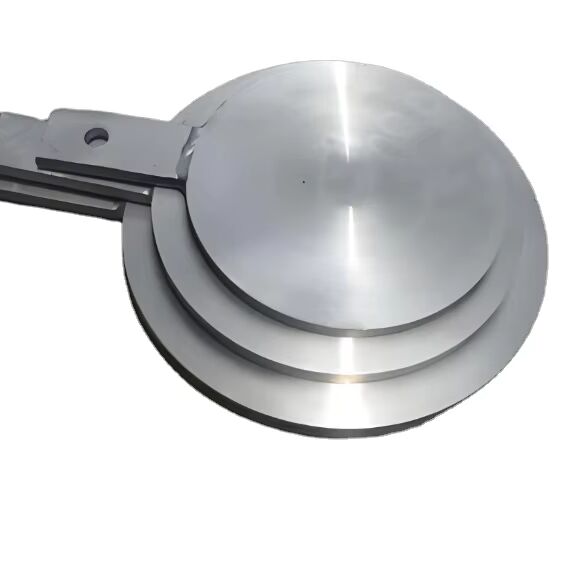

Stainless Steel ASTM A182 F316H Paddle Blind Flange ASME B16.48
Quick Specifications
Product Description
| Product Name | Spade Line Blinds Flange |
| Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B/B16.48, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Type | Special Flange: According to the drawing Picture |
| Materials |
Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; |
| Dimension | (150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300 |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Inter granular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement |
| Certificates | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Advantages |
1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, Petrol Ecuador, SHELL, etc.) |
Material Grade
| Trade Name | ASTM Pipe | Pipe Fittings | UNS | Forging & Flanges |
| Monel@ 400 | B165 | B366 WPNC | N04400 | B564 N04400 |
| Inconel@ 600 | B167 | B366 WPNCI | N06600 | B564 N06600 |
| Inconel@ 625 | B444 | B366 WPNCMC | N06625 | B564 N06625 |
| Incoloy@ 800 | B163 | B366 WPNIC | N08800 | B564 N08800 |
| Incoloy@ 800H | B407 | B366 WPNIC10 | N08810 | B564 N08810 |
| Incoloy@ 800HT | B407 | B366 WPNIC11 | N08811 | B564 N08811 |
| Incoloy@ 825 | B423 | B366 WPNICMC | N08825 | B564 N08825 |
| Hastelloy@ B2 | B619/622 | B366 WPHB-2 | N10665 | B564 N10665 |
| Hastelloy@ C276 | B619/622 | B366 WPHC276 | N10276 | B564 N10276 |
| Hastelloy@ C22 | B619/622 | B366 WPHC22 | N06022 | B564 N06022 |
| Carpenter 20Cb-3@ | B729 | B366 WP20Cb | N08820 | B462 N08820 |
| SANICRO 28@ | B668 | N08028 |
This alloy has the following characteristics:
1. Good resistance to stress corrosion cracking
2. Good resistance to point corrosion and gap corrosion
3. Good antioxidant and non-oxidizing thermal acid properties
4. Good mechanical properties at room temperature and at temperatures up to 550 ℃
5. Certification of pressure vessels with manufacturing temperatures up to 450 ℃
ASTM, ASME Nickel Alloy Flanges Value Added Services
Material Testing:
We at Ganpat Industrial Corporation ensure that all our materials go through strict quality tests before dispatching them to our clients.
• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test
Drawing:
