商品の詳細:
|
| 製品名: | スペクタクルラインブラインド | 製品タイプ: | 造られたフランジ |
|---|---|---|---|
| 材料: | ASTM B564 UNS N08825 | 標準: | ASME B16.48 |
| サイズ: | 6インチ | プレッシャー: | CL150 |
| 価格: | 交渉可能 | MOQ: | 1個 |

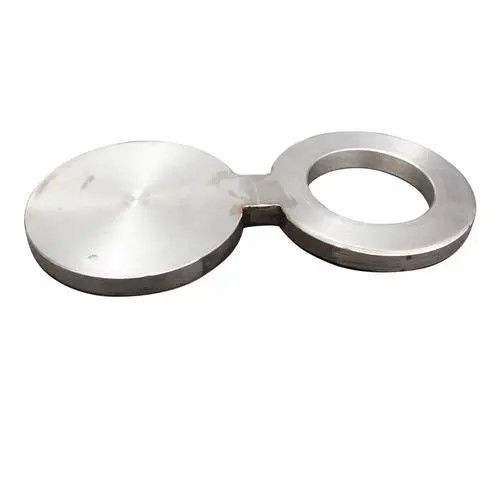

Forged Flange Nickel Alloy Spectacle Blinds UNS N08810 ASME B16.48
Specifications
1. Spectacle line blinds
2. Size: 1/2’’—60’’
3. ISO9001,ISO9000
4. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on
5. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform
Product Description
| Product Name | Spectacle line blinds |
| Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B/B16.48, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Type | Special Flange: According to the drawing Picture |
| Materials |
Copper Nickel Alloy: ASTM B466 UNS C70600, ASTM B466 UNS C71500, CUNI90/10, CUNI70/30 Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70.... ASTM A516 GRADE 70 |
| Dimension | (150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300 |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Inter granular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement |
| Certificates | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Advantages |
1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, Petrol Ecuador, SHELL, etc.) |
NICKEL ALLOY
Nickel and nickel-based alloys possess effective resistance to a wide range of corrosive environments , in many cases, some materials such as stainless steel or super stainless steel are unable to resist these corrosive conditions. Nickel itself is a very versatile corrosion-resistant material, while as an alloying element, in a large composition range, nickel possesses Metallurgical compatibility with the other metals ,can be composed of a number of binary and ternary alloys and other complex alloys system,nickel-based alloys have a unique corrosion resistance and high temperature corrosion resistance.to deal with the corrosion problems that include chemical,petrochemical, marine, paper, agricultural chemicals, oil and gas, energy conversion and many other industrial environments. In this artical, the corrosion resistance in aqueous solution of nickel and Part of the nickel-base alloys was discussed.
Some common applications for nickel alloys:
| Trade Name | ASTM Pipe | Pipe Fittings | UNS | Forging & Flanges |
| Monel@ 400 | B165 | B366 WPNC | N04400 | B564 N04400 |
| Inconel@ 600 | B167 | B366 WPNCI | N06600 | B564 N06600 |
| Inconel@ 625 | B444 | B366 WPNCMC | N06625 | B564 N06625 |
| Incoloy@ 800 | B163 | B366 WPNIC | N08800 | B564 N08800 |
| Incoloy@ 800H | B407 | B366 WPNIC10 | N08810 | B564 N08810 |
| Incoloy@ 800HT | B407 | B366 WPNIC11 | N08811 | B564 N08811 |
| Incoloy@ 825 | B423 | B366 WPNICMC | N08825 | B564 N08825 |
| Hastelloy@ B2 | B619/622 | B366 WPHB-2 | N10665 | B564 N10665 |
| Hastelloy@ C276 | B619/622 | B366 WPHC276 | N10276 | B564 N10276 |
| Hastelloy@ C22 | B619/622 | B366 WPHC22 | N06022 | B564 N06022 |
| Carpenter 20Cb-3@ | B729 | B366 WP20Cb | N08820 | B462 N08820 |
| SANICRO 28@ | B668 | N08028 |
| Alloy | Ni | C | Mn | Fe | S | Si | Cu | Cr | Al | Ti | Nb | Mo |
| Nickel 200 | 99.5 | 0.08 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Nickel 200 | 99.5 | 0.01 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Monel 400 | 66.5 | 0.2 | 1 | 1.2 | 0.01 | 0.2 | 31.5 | -- | -- | -- | -- | -- |
| Monel 401 | 42.5 | 0.05 | 1.6 | 0.4 | 0.008 | 0.1 | -- | -- | -- | -- | -- | |
| Monel K500 | 66.5 | 0.1 | 0.8 | 1 | 0.005 | 0.2 | 29.5 | -- | 2.7 | 0.5 | -- | -- |
| Inconel 600 | 76 | 0.08 | 0.5 | 8 | 0.006 | 0.2 | 0.2 | 15.5 | -- | -- | -- | -- |
| Inconel 601 | 60.5 | 0.05 | 0.5 | 14.1 | 0.007 | 0.2 | 0.5 | 23 | 1.4 | -- | -- | -- |
| Inconel 718 | 52.5 | 0.04 | 0.2 | 18.5 | 0.008 | 0.2 | 0.2 | 19 | 0.5 | 0.9 | 5.1 | 3 |
| Inconel X-715 | 73 | 0.04 | 0.5 | 7 | 0.005 | 0.2 | 0.2 | 15.5 | 0.7 | 2.5 | 1 | -- |
| Incoloy 800 | 32.5 | 0.05 | 0.8 | 46 | 0.008 | 0.5 | 0.4 | 21 | 0.4 | 0.4 | -- | -- |
| Incoloy 803 | 32.0- 37.0 |
0.06- 0.10 |
≤1.5 | ≤0.015 | ≤1.0 | ≤0.75 | 25.0- 29.0 |
0.15- 0.60 |
0.15- 0.6 |
-- | -- | |
| Incoloy 825 | 42 | 0.03 | 0.5 | 30.4 | 0.02 | 0.2 | 2.2 | 21.5 | 0.1 | 0.9 | -- | 3 |
-Sufficient Forging, Heating, Machining Equipment
-In-house Inspection Instruments for Quality Controlling
-Competitive Price & High Quality Assurance
-Fast, Effective and Efficient Services
-Directly supplier of Metallurgical Equipment
-Experienced Professionals on Communications
Drawing:
Packaging & Shipping
| Packaging: | In wooded cases , pallets or according to clients' requirements |
| Shipping: | Tianjin port, Shanghai port and the other main ports in China |
Q: Are you trading company or manufacturer ?
A: We are manufacturer ,You can see the certification.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
